    High Performance Lifepo4 Solar House Lithium Ion 48V 150AH Battery Packs

    Ask Lasest Price
    Brand Name : CTS
    Model Number : CTS-48150
    Certification : CE
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5000 untis per month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

    High Performance Lifepo4 Solar House Lithium Ion 48V 150AH Battery Packs

    High Performance lifepo4 solar house lithium ion 48V 150AH battery packs


    Li-ion(NCM) Battery Advantages:
    1. High energy density is the biggest advantage of ternary lithium battery.
    2. With excellent comprehensive performance, which is balanced in capacity and safety.
    3. Light weight and small footprint.
    4. Better endurance and longer duration.
    5. Good low temperature performance.
    6. High charging efficiency.

    7. OEM Logo.

    Specifications:

    48V 150Ah lithium NMC battery pack
    MechanicalCell & Method21700 NMC, 13S30P(6S30P+7S30P)
    Dimension(L*W*H)367 x 340 x 80mm *2
    Weight40KG
    Electrical CharacteristicsRated Capacity150Ah
    Min Capacity150Ah
    High Rate Discharge Capacity90% Rated Capacity
    Discharge Capacity @ -20(-4)70% Rated Capacity
    Norminal Voltage48.1V
    Energy7215Wh
    Internal Impedance(@ 1000Hz.)20 mΩ
    Cycle Life>3000 Cycles @ 0.5C 85% DOD
    Months Self Discharge5% @ 25(77)
    Efficiency of Charge100% @ 1/3C
    Efficiency of Disharge95% @1C
    Standard ChargeMax Charge Voltage54.6V
    Charge Current1/2C, 30A
    Max Charge Current70A
    Standard DischargeStandard discharge Current0.5C, 75A
    Max Discharge Current150A
    Discharge Cut-off Voltage39V
    EnvironmentalCharge Temperature0 to 45(32 to 113) @ 65±20%Relative Humidity
    Discharge Temperature-20 to 60(-4 to 140) @ 65±20%Relative Humidity
    Storage Temperature1 Month, -20 to 60(-4 to 140) @ 65±20%Relative Humidity
    6 Month, -20 to 30(-4 to 80) @ 65±20%Relative Humidity

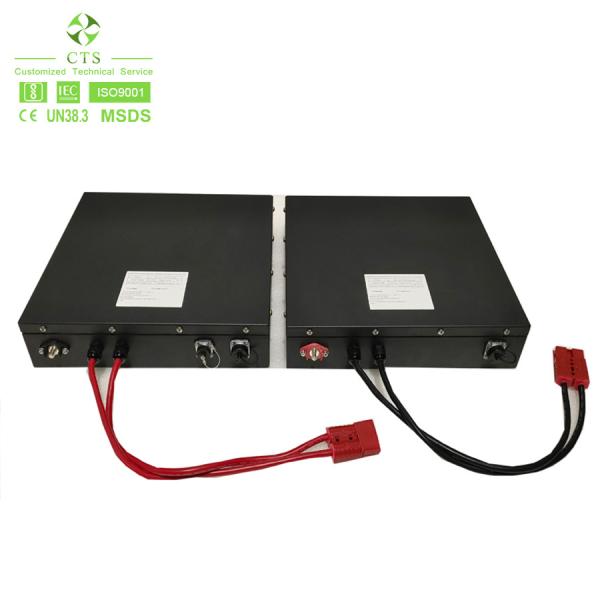

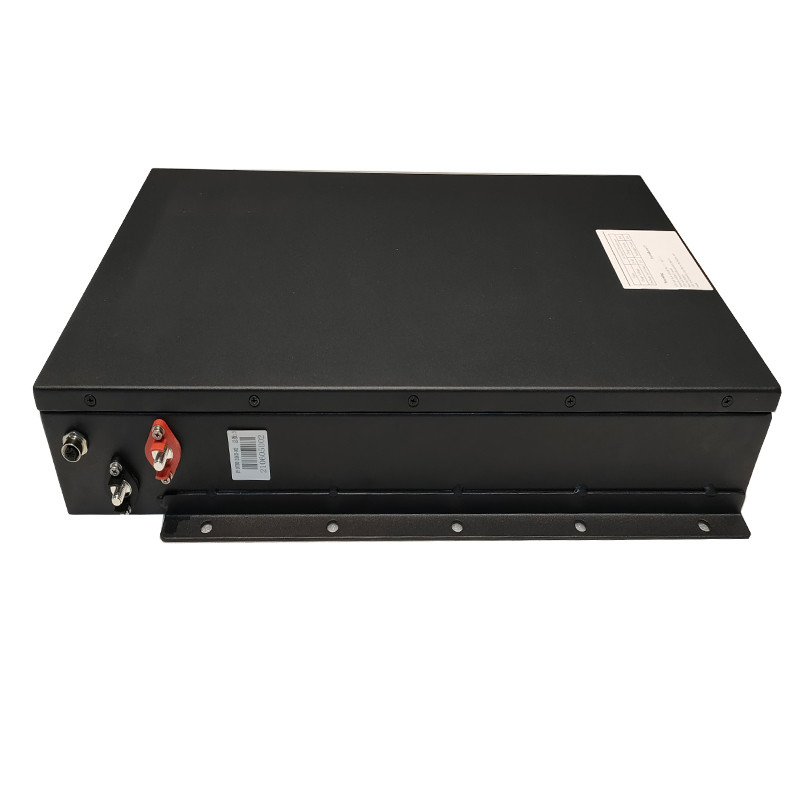

    Pictures:
    High Performance Lifepo4 Solar House Lithium Ion 48V 150AH Battery Packs

    High Performance Lifepo4 Solar House Lithium Ion 48V 150AH Battery Packs

    FAQ:

    1): Are you manufacturer or simply trading company?
    Re: We are manufacturer, and we sincerely welcome you to visit our factory!

    2): Can I get a lower price if I order large quantities?
    Re: Yes, cheaper prices with more bigger size orders.

    3): Do you offer charger for battery?
    Re: Yes, we do. If you also need charger, please mention it when sending inquiry, kindly note that our charger cost is not included in the battery cost.

    4): How about your company intelligence?
    Re: ISO9001 certification, China Hi-tech company, 10 million battery assurance, 8 patents, Almost all products are MSDS, UN38.3, IEC62133, CB,etc certificated.

    5): When you ship my order?
    Re: Normally 5-10days after receiving your payment, but it can be negotiated based on order qty and production schedule.

    6): How about the quality guarantee period?
    Re: Two year!
