    150kwh 200kwh Electric Car Battery Pack, Battery Lithium 600V 500V 400V 150 Kw For Heavy Duty Equipment Excavators

    Ask Lasest Price
    Brand Name : CTS
    Model Number : CTS-614200
    Certification : CE
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 300 units per month
    Delivery Time : 40 working days
    • Product Details
    • Company Profile

    150kwh 200kwh Electric Car Battery Pack, Battery Lithium 600V 500V 400V 150 Kw For Heavy Duty Equipment Excavators

    150kwh 200kwh Electric Car Battery Pack, Battery Lithium 600V 500V 400V 150 Kw For Heavy Duty Equipment Excavators 150kwh 200kwh Electric Car Battery Pack, Battery Lithium 600V 500V 400V 150 Kw For Heavy Duty Equipment Excavators
    150kwh 200kwh Electric Car Battery Pack, Battery Lithium 600V 500V 400V 150 Kw For Heavy Duty Equipment Excavators
    Product Description

    New Electric Car Battery 360V 400V 500V EV Trailer LiFePO4 Battery, 600V 50kwh 100kwh Standard EV Lithium BatteryNew Electric Car Battery 360V 400V 500V EV Trailer LiFePO4 Battery, 600V 50kwh 100kwh Standard EV Lithium Battery

    MODELF128206F128230F153206F153230
    ELECTRICAL SPECIFICATIONS
    Cell Type - Chemistry3.2V 206ah3.2V 230ah3.2V 206ah3.2V 230ah
    Rated Capacity206Ah230Ah206Ah230Ah
    Rated Voltage128V128V153.6V153.6V
    Energy26.386kWh29.44kWh31.16kWh35.328kWh
    IP ProetctionIP67
    Cycle life>3000cycles(90%DOD, 0.5C)
    MECHANICAL SPECIFICATIONS
    Dimensions (L x W x H)Within L1060*W630*H245mm
    Weight<=230Kg
    DISCHARGE/CHARGE SPECIFICATIONS
    Discharge Cut-off Voltage100V100V120V120V
    Max Continuous Discharging1C
    Peak Discharge Current2C/30s; 3C/5s
    Recommended Discharge Current0.5C
    CHARGE SPECIFICATIONS
    Charging Limited Voltage146V146V175.2V175.2V
    Max Charging Current1C
    Recommended Charge Current0.5C
    TEMPERATURE SPECIFICATIONS
    Self discharge rate≤ 3 %/month
    Charge Temperature Range0~50ºC
    Discharge Temperature Range-20~60ºC
    Recommended Operating Temp15~35ºC
    Storage Temperature & Humidity-20~35ºC, 45~75%RH
    Range (Less than 1 month)
    Storage Temperature & Humidity-10~35ºC, 45~75%RH
    Range (Less than 3 months)
    Recommended Storage Temp. & Humidity Range15~35ºC, 45~75%RH
    System cooling modeLiquid cooling
    MODELF96280F96302F115280F115302
    ELECTRICAL SPECIFICATIONSELECTRICAL SPECIFICATIONSELECTRICAL SPECIFICATIONS
    Cell Type3.2V 280ah3.2V 302h3.2V 280ah3.2V 302h
    Rated Capacity280Ah302Ah280Ah302Ah
    Rated Voltage96V96V115.2V115.2V
    Energy26.88kWh28.99kWh32.256kWh34.79kWh
    IP ProetctionIP67
    Cycle life>3000cycles(90%DOD, 0.5C)
    MECHANICAL SPECIFICATIONS
    Dimensions (L x W x H)Within L1060*W630*H245mm
    Weight<=230Kg
    DISCHARGE/CHARGE SPECIFICATIONS
    Discharge Cut-off Voltage75V75V90V90V
    Max Continuous Discharging1C
    Peak Discharge Current2C/30s; 3C/5s
    Recommended Discharge Current0.5C
    CHARGE SPECIFICATIONS
    Charging Limited Voltage109.5V109.5V131.4V131.4V
    Max Charging Current1C
    Recommended Charge Current0.5C


    Product Applications & Photos

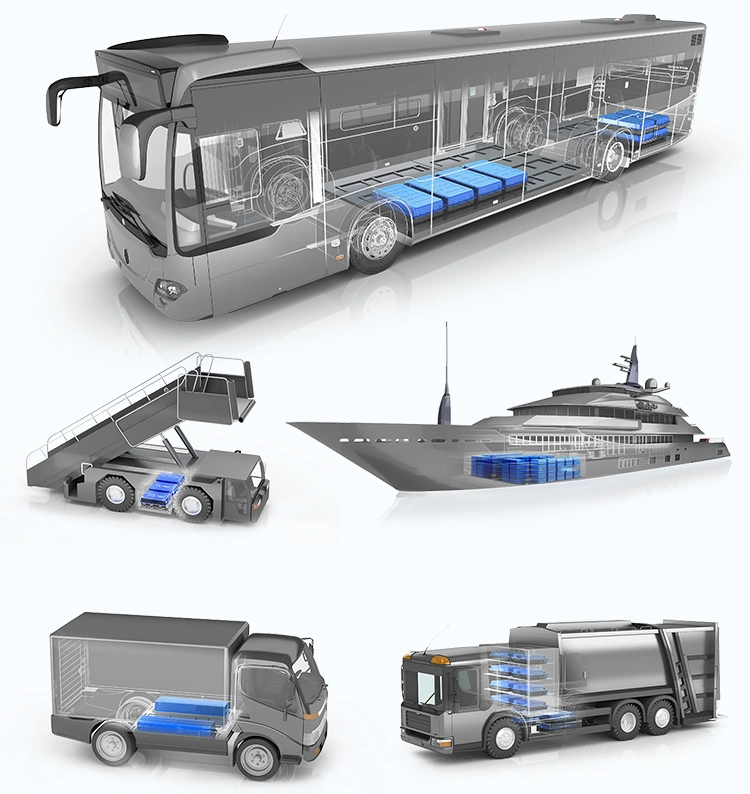

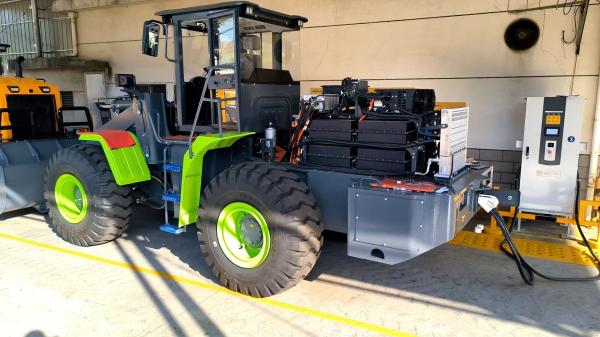

    Our standard module widely used in the public bus, industry vehicle, like mining truck, Tunnel vehicle,
    large capacity AGV, kyline crane. We have extensive experience in different market.
    lf you have any question,please contact us, we will provide the proper solution for you!

    New Electric Car Battery 360V 400V 500V EV Trailer LiFePO4 Battery, 600V 50kwh 100kwh Standard EV Lithium BatteryNew Electric Car Battery 360V 400V 500V EV Trailer LiFePO4 Battery, 600V 50kwh 100kwh Standard EV Lithium Battery

    Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle
    batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries
    and so on. We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah,
    which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,
    E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.

    We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements.
    To realized full automation, we has introduced advanced foreign equipment and technology from Korea and
    Germany. To ensure the best quality, we has passed
    I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1
    certifications. We stick to the company concept of human orientation and efficient innovation and we welcome
    customization. So, lets join together to promote the development of renewable energy and friendly environment.
